Filter fume cupboard
with 500 mm clear opening
according to EN standard




We build your filter fume cupboard according to ergonomic aspects and the highest standards for your safety

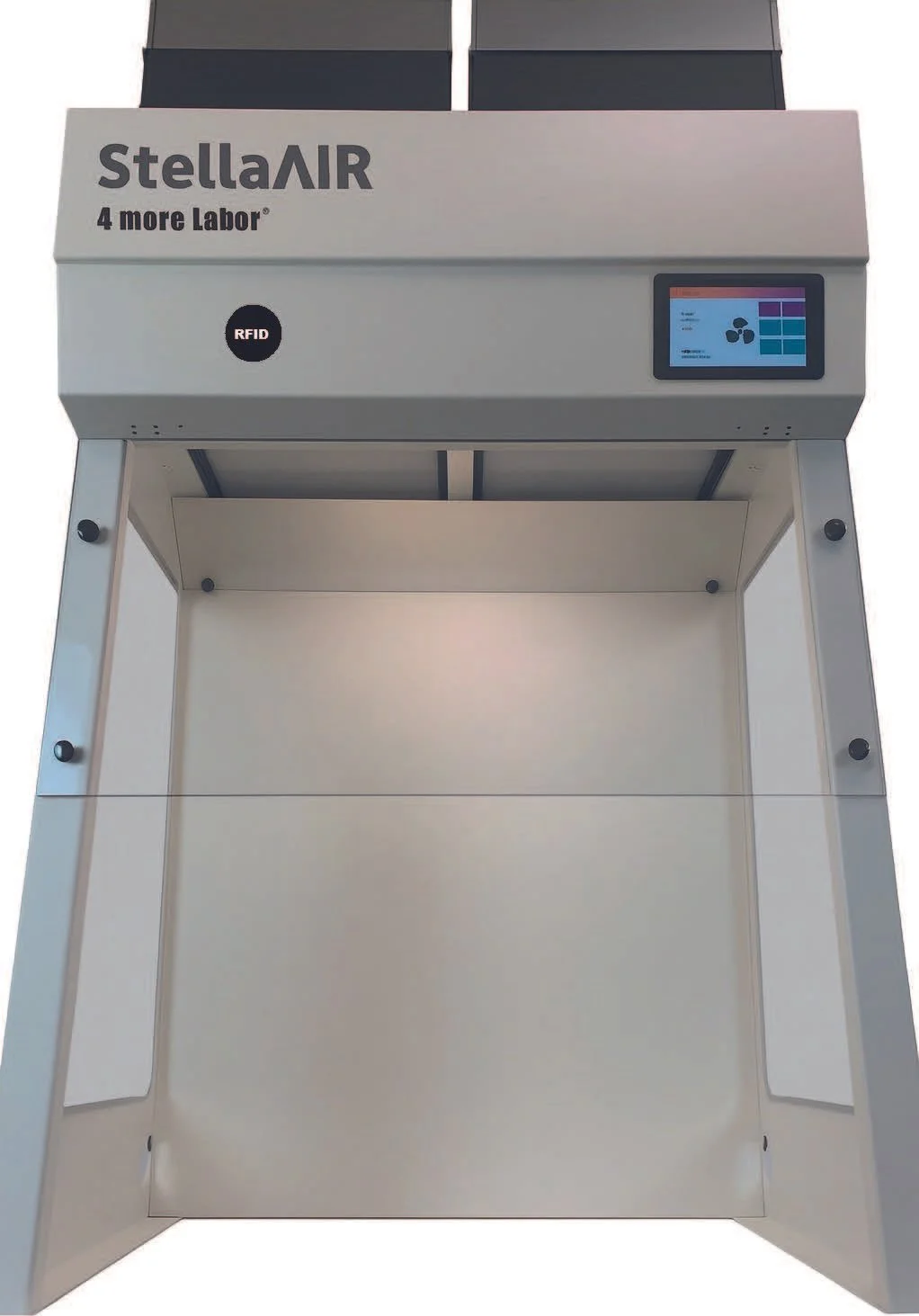

Our new StellaAIR® filter fume hoods enable you to work safely without an external exhaust air connection with our qualified selection of filter cassettes.

We offer 3 basic sizes with a width of 900, 1200 and 1500mm. (Other sizes are available on request)

Our fume hoods are designed in such a way that everyone can assemble them themselves, like a modular system.

We use high-quality materials made of PMMA, epoxy-coated steel and stainless steel. With our standard rear baffle plate, we not only guide the air flow over the ceiling filter, but also redirect the air flow to achieve an optimum flow in the open working area.

We offer you a working opening of 500 mm to ensure comfortable operation. A key control panel with an LCD display, touch buttons, and a maintenance indicator come standard. Also included is LED lighting, though without a worktop, allowing for direct installation on your worktable.

  • Completely portable

  • Simple and intuitive set-up possible (this also applies to filter replacement after maintenance intervals). When validating the filters after replacement, we recommend servicing via one of our qualified trade partners

  • Transparent side and front window for all-round visibility when working

  • All our filter fume cupboards have full-width working access with a permanent access opening 500 mm high.

  • All fume cupboards have one powerful fan per filter module

Protection of User: StellaAIR® Fume hoods protect the operator from vapors, aerosols and/or particles while performing laboratory procedures. We use several filter elements, depending on their application.

Activated Carbon/HEPA Filter Options: To ensure maximum safety, we qualify the frequency of use of your chemicals to find the best filter composition for you.

We have 6 different Filter types that we can also put together in combination.

With the option of a HEPA module, we even achieve a measurable performance value like with a safety cabinet.

All prints are checked before delivery. The corresponding Measurement certificates are available upon request.

Power supply:110-230 V, AC, 50 Hz,8A, with country-specific network adapters
